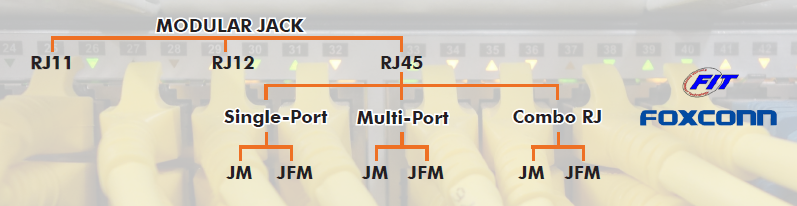

RJ45-Buchsen sind wohl am bekanntesten, denn gesehen hat man sie schon oft. Sie gehören zur Familie der Modularbuchsen und kommen vor allem bei der Vernetzung von Industrie- und Serveranlagen zum Einsatz.
Die RJ45-Buchsen verfügen über eine 8P8C-Konfiguration (8 Positionen und 8 Kontakte) und sind für eine Reihe von LAN-Kategorien von Cat3 bis Cat6a ausgelegt.
Es stehen Ihnen von Single-Port bis 2x8 Ports, mit oder ohne Übertrager zur Verfügung. Darüber hinaus sind auch verschiedene Montageoptionen, wie z. B. Leiterplatten- bzw. Frontplattenmontagen möglich. Um die Einsatzbereiche noch zu erweitern sind bei A-Switch auch Combo-Varianten mit z.B. einem USB- oder HDMI-Anschluss erhältlich.
Standardmäßig werden die RJ45-Buchsen mit eingebauten Status-LEDs gefertig, die es in verschiedenen Farbkombinationen (je nach Datenrate), gibt. Als eine weitere Option sind die Buchsen auch mit Light-Pipes oder ohne LEDs verfügbar.
ACTIVE - RJ45 LAN Übertrager (JFM)
Zur besseren mobilen Darstellung der Tabelle drehen Sie bitte Ihr Handy quer.
25G
10G
5G
2.5G
1G
| NxN |
Artikelnummer |
Beschreibung | Befestigungsart | L x W x H (mm) |
Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JFM88130-B045-4F | 1x1 25G RJ45, P/F, T/U, w/ Shield, w/o, LEDs | P/F | 24.13 X 17.88 X 16.60 | 3.18 | |
| 1x1 | JFM88110-B046-4F | 1x1 25G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 24.13 X 17.88 X 16.60 | 2.79 |
| NxN |
Artikelnummer | Beschreibung | Befestigungsart | LxWxH(mm) |
Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JFM5801J-713G-4F | 1x1 10G RJ45, T/H, T/D, w/ Shield, w/ LEDs | T/H | 28.58 X 18.08 X 11.77 | 2.79 | LED: Option |
| 1x1 | JFM5801J-M12G-4F | 1x1 10G RJ45, T/H , T/D, w/ Shield, w/ LEDs | T/H | 28.58 X 18.08 X 11.77 | 2.79 | LED: Option |
| 1x1 | JFM5801F-BU1G-4F | 1x1 10G RJ45, T/H, T/D, PoH/90W, w/ Shield, w/ LEDs | T/H | 28.58 X 18.08 X 11.77 | 2.79 | 1. PoE: Option(15W~150W+) 2. LED: Option |
| 1x1 | JFM58110-BH7G-4F | 1x1 10G RJ45, T/H , T/U, PoH+/150W, w/ Shield, w/o LEDs | T/H | 34.80 X 20.06 X 16.50 | 2.40 | PoE: Option(15W~150W+) |
| 1x1 | JFM5811J-SG17-4F | 1x1 10G RJ45, T/H , T/U, w/ Shield, w/ LEDs | T/H | 26.16 X 20.06 X 16.50 | 3.17 | LED: Option |
| 1x2 | JFM5831G-E07G-4F | 1x2 10G RJ45, T/H , T/U, w/ Shield, w/ LEDs | T/H | 32.76 X 30.33 X 12.39 | 3.17 | LED: Option |
| 1x4 | JFM58410-B06G-4F | 1x4 10G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 32.76 X 58.56 X 12.40 | 3.17 | LED: Option |
| 2x1 | JFM58A1Y-TPH2-4F | 2x1 10G RJ45, T/H, PoH/90W, w/ Shield, w/ Light Pipes | T/H | 41.16 X 17.26(49) X 25.58 | 3.18 | 1. Light Pipe: Option 2. PoE: Option(15W~90W+) |
| 2x1 | JFM58A3Y-B07G-4F | 2x1 10G RJ45, P/F, w/ Shield, w/ Light Pipes | P/F | 41.16 X 17.26 X 25.58 | 2.80 | Light Pipe: Option |
| 2x4 | JFM58C3Y-BA2G-4F | 2x4 10G RJ45, P/F, w/ Shield, w/ Light Pipes | P/F | 41.42 X 59.18 X 25.58 | 2.15 | Light Pipe: Option |
| 2x4 | JFM58C1Y-B90G-4F | 2x4 10G RJ45, T/H, w/ Shield, w/ Light Pipes | T/H | 41.42 X 59.18 X 25.58 | 2.50 | Light Pipe: Option |
| 2x6 | JFM58D3Y-BP31-4F | 2x6 10G RJ45, P/F, w/ Shield, w/ Light Pipes | P/F | 41.16 X 87.12 X 25.58 | 2.14 | Light Pipe: Option |
| 2x8 | JFM58E1Y-B71G-4F | 2x8 10G RJ45, T/H, w/ Shield, w/ Light Pipes | T/H | 41.16 X 115.07 X 25.58 | 3.18 | Light Pipe: Option |
| 2x8 | JFM58E3Y-BUDG-4F | 2x8 10G RJ45, P/F, w/ Shield, w/ Light Pipes | P/F | 41.16 X 115.07 X 25.58 | 2.14 | Light Pipe: Option |
| RJ45 Combo 1xUSB3.1+Elevated Type C | JFM58U1B-BV51-4F | 1x1 10G combo 1xUSB3.1+Elevated Type C with surge(15KV), T/H, Red(200C) housing + Red(200C) USB | T/H | 26.95 X 19.02 X 31.01 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.0 | JFM58U1J-T36U-4F | 1x1 10G combo 2xUSB3.0, T/H, Black housing+ Blue(300C) USB | T/H | 27.30 X 19.02 X 31.05 | 3.37 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.1 | JFM58U1A-B3R8-4H | 1x1 10G combo 2xUSB3.1, T/H, Black housing + Red(200C) USB | T/H | 26.95 X 18.85 X 31.05 | 3.37 | 1. LED: Option 2. Housing & USB color: Option |
| Vertical 1x1 | JFM58V10-TA04-4F | 1x1 10G vertical, T/H, w/ Shield, w/o LED | T/H | 17.02 X 16.45 X 17.02 | 2.00 | LED: Option |
| NxN |
Artikelnummer | Beschreibung | Befestigungs-art | L x W x H (mm) | Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JFM78010-TP23-4F | 1x1 5G RJ45, T/H, T/D, uPoE/60W, w/ Shield, w/o LEDs | T/H | 31.24 X 19.40X 11.78 | 2.29 | PoE: Option(15W~90W+) |
| 1x1 | JFM7801J-TG02-4F | 1x1 5G RJ45, T/H, T/D, w/ Shield, w/ LEDs | T/H | 28.58 X 18.08 X 11.77 | 2.79 | |
| 1x1 | JFM78110-B018-4F | 1x1 5G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 26.53 X 16.80 X 13.50 | 3.20 | LED: Option |
| 1x1 | JFM78110-BU04-4F | 1x1 5G RJ45, T/H, T/U, w/ Shield, uPoE/60W, w/o LEDs | T/H | 32.51 X 13.66 X 16.66 | 3,18 | PoE: Option(15W~90W+) |
| 1x2 | JFM78310-E002-4F | 1x2 5G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 32.76 X 30.33 X 12.39 | 3.17 | LED: Option |
| 1x4 | JFM78410-SG22-4F | 1x4 5G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 32.76 X 58.26X 12.40 | 3.17 | LED: Option |
| 2x4 | JFM78C1Y-BU08-4F | 2x4 5G RJ45, T/H, w/ Shield, w/ Light Pipes | T/H | 41.16 X 59.18 X 25.58 | 3.56 | Light Pipe: Option |
| 2x4 | JFM78C3Y-AP03-4F | 2x4 5G RJ45, P/F, PoE+/30W, w/ Shield, w/ Light Pipes | T/H | 41.165 X 59.18 X 25.58 | 2.15 | 1. Light Pipe: Option 2. PoE: Option(15W~90W+) |
| 2x6 | JFM78D10-TU18-4F | 2x6 5G RJ45, T/H, w/ Shield, w/o LED | T/H | 38.58 X 81.28 X 25.42 | 2.60 | |
| 2x8 | JFM78E13-MPH3-4F | 2x8 5G RJ45, T/H, PoH/90W, w/ Shield, w/ LED | T/H | 41.21 X 115.06 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x8 | JFM78E1N-TU15-4F | 2x8 5G RJ45, T/H, uPoE/60W, w/ Shield, w/ LED | T/H | 41.21 X 115.06 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| RJ45 Combo 2xUSB3.0 | JFM78U1J-BC33-4F | 1x1 5G combo 2xUSB3.0, T/H, R/A, Black Housing + Blue(300C) USB | T/H | 27.3 X 19.02 X 31.05 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.1 | JFM78U1B-BAVH-4F | 1x1 5G combo 2xUSB3.1, T/H, R/A, Blue(200C)Housing, Black Housing, Blue(200C) USB, w/ surge(15KV) | T/H | 26.95 X 19.02 X 31.01 | 2.71 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 1xUSB3.1+Elevated Type C | JFM78U1F-BV56-4F | 1x1 5G combo 1xUSB3.1+Elevated Type C with surge(2KV,15KV), T/H, Black Housing + Red(187C) USB | T/H | 26.95 X 18.85 X 31.01 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| Vertical 1x1 | JFM78V10-TA03-4F | 1x1 5G RJ45, T/H, Vertical, w/ Shield, w/o LEDs | T/H | 17.02 x 16.26 x 17.02 | 2.00 | LED: Option |
| NxN |
Artikelnummer | Beschreibung | Befestigungs-art | L x W x H (mm) | Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JFM4801J-R112-4F | 1x1 2.5G RJ45, T/H,T/D, w/ Shield, w/ LEDs | T/H | 34.3 x 21.7 x 14.12 | 3.35 | LED: Option |
| 1x1 | JFM48110-B016-4F | 1x1 2.5G RJ45, T/H, w/ Shield, uPoE/60W, w/o LEDs | T/H | 25.53 X 17.04 X 13.5 | 3.20 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 1x1 | JFM4811J-B017-4F | 1x1 2.5G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 25.53 X 17.04 X 13.5 | 3.20 | LED: Option |
| 1x1 | JFM48011-TU01-4F | 1x1 2.5G RJ45, T/H, T/D, w/ Shield, PoH/90W, w/ LEDs | T/H | 28.58 X 18.08 X 11.77 | 2.79 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 1x1 | JFM4811L-H395-7H | 1x1 2.5G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 26.06 X 17.58 X 11.55 | 3.17 | LED: Option |
| 1x1 | JFM4801A-D120-7F | 1x1 2.5G RJ45, T/H ,T/D, w/ Shield, w/ LEDs | T/H | 25.45 X 17.16 X 11.55 | 2.79 | LED: Option |
| 1x2 | JFM48310-E001-4F | 1x2 2.5G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 32.76 X 30.33 X 12.39 | 3.17 | LED: Option |
| 1x4 | JFM48410-SG21-4F | 1x4 2.5G RJ45, T/H, T/U, w/ Shield, w/o LEDs | T/H | 32.76 X 58.26X 12.40 | 3.17 | LED: Option |
| 2x1 | JFM48A10-EL21-4F | 2x1 2.5G RJ45, T/H, w/ Shield, w/o LEDs | T/H | 28.4 X 17.27 X 25.78 | 2.50 | |
| 2x4 | JFM48C1N-BU25-4F | 2x4 2.5G RJ45, T/H, w/ Shield, PoE/30W, w/ LEDs | T/H | 41.42 X 59.18 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x4 | JFM48C1S-TP31-4F | 2x4 2.5G RJ45, T/H, w/ Shield, PoH/90W, w/ LEDs | T/H | 41.42 X 59.18 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x4 | JFM48C1S-TPH3-4F | 2x4 2.5G RJ45, T/H, w/ Shield, PoH/90W, w/ LEDs | T/H | 41.42 X 59.18 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x4 | JFM48C3Y-0P11-4F | 2x4 2.5G RJ45, P/F, w/ Spring, uPoE/60W, w/ light pipe | P/F | 41.42 X 59.18 X 25.32 | 2.15 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x6 | JFM48D10-0750-4F | 2x6 2.5G RJ45, T/H, w/ Shield, uPoE/60W, w/o LEDs | T/H | 38.58 X 87.12 X 25.42 | 3.18 | PoE: Option(15W~90W+) |
| 2x8 | JFM48E1N-BU85-4F | 2x8 2.5G RJ45, T/H, w/ Shield, uPoE/60W, w/ LEDs | T/H | 41.21 X 115.06 X 25.32 | 2.60 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| 2x8 | JFM48E3Y-AP15-4F | 2x8 2.5G RJ45, P/F, w/ Spring, uPoE/60W, w/ light pipe | P/F | 41.17 X 115.06 X 25.58 | 2.14 | 1. LED: Option 2. PoE: Option(15W~90W+) |
| RJ45 Combo 1xUSB3.1+Elevated Type C | JFM48U1G-BACB-4F | 1x1 2.5G combo 1xUSB3.1+Elevated Type C with surge(15KV), T/H, Black Housing + Red(200C) USB | T/H | 26.95 X 18.85 X 31.05 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.0 | JFM48U1G-B3R6-4F | 1x1 2.5G combo 2xUSB3.0, T/H, R/A, Transparent Housing + Red(200C) USB | T/H | 26.95 X 18.85 X 31.05 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.1 | JFM48U1M-BA04-4F | 1x1 2.5G combo 2xUSB3.1, T/H, R/A, Red(187C) housing + Blue(300C) USB | T/H | 26.95 X 19.02 X 31.05 | 2.71 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB2.0 | JFM48U1M-F2GA-4F | 1x1 2.5G combo 2xUSB2.0, T/H, R/A, Black Housing + Black USB | T/H | 27.3 X 18.7 X 31.05 | 2.29 | LED: Option |
| Vertical 1x1 | JFM48V11-7103-4F | 1x1 2.5G RJ45, T/H, Vertical, w/ Shield,w/ LEDs | T/H | 17.02 X 16.45 X 17.02 | 2.00 | LED: Option |
| NxN |
Artikelnummer | Beschreibung | Befestigungs-art | L x W x H (mm) | Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JFM38013-0L03-4F | 1x1 1G RJ45, T/H, T/D, w/ Shield, w/ LEDs | T/H | 21.33 X 15.76 X 13.35 | 3.20 | LED: Option |
| 1x1 | JFM38111-2101-4F | 1x1 1G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 25.53 X 16.80 X 13.50 | 3.20 | LED: Option |
| 1x1 | JFM3811A-F851-4F | 1x1 1G RJ45, T/H, T/U, w/ Shield, w/ LEDs, Length: 0.85 inch | T/H | 21.59 X 16.38 X 13.46 | 3.18 | LED: Option |
| 1x1 | JFM3811F-H380-7H | 1x1 1G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 26.06 X 17.58 X 11.55 | 3.17 | LED: Option |
| 1x1 | JFM3811Q-AC08-4F | 1x1 1G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 26.01 X 17.52 X 11.55 | 3.17 | LED: Option |
| 1x1 | JFM3811Q-FLP1-4F | 1x1 1G RJ45, T/H, T/U, w/ Shield, w/ LEDs | T/H | 25.53 X 17.04 X 13.50 | 3.20 | LED: Option |
| 1x2 | JFM3831D-HE01-4F | 1x2 1G RJ45, T/H, T/U, w/ Shield,w/ LEDs | T/H | 32.76 X 30.33 X 12.39 | 3.17 | LED: Option |
| 1x4 | JFM38412-BL01-4F | 1x4 1G RJ45, T/H, T/D, w/ Shield, w/ LEDs | T/H | 21.50 X 58.90 X 13.35 | 3.20 | LED: Option |
| 2x1 | JFM78A10-EL22-4F | 2x1 lower port 1G & upper port passive RJ45, T/H, w/ Shield, w/o LEDs | T/H | 28.40 X 17.27 X 25.78 | 2.50 | |
| 2x1 | JFM38A1B-EL04-4F | 2x1 1G RJ45, T/H, w/ Shield, w/ LEDs | T/H | 28.4 X 17.30 X 25.78 | 2.10 | LED: Option |
| 1x1 | JFM38V1S-0EV7-7F | 1x1 1G RJ45, T/H, Vertical, w/ Shield,w/ LEDs, w/ surge(2KV,6KV) | T/H | 17.02 X 16.26 x 17.02 | 2.00 | |
| 2x1 | JFM38A1G-EN11-4F | 2x1 1G RJ45, T/H,w/ Shield, w/ LEDs | T/H | 28.01 X 17.16X 27.20 | 3.05 | LED: Option |
| 2x2 | JFM38B11-SC06-4F | 2x2 1G RJ45,T/H, Sink type ,w/ Shield, w/ LEDs | T/H | 34.54 X 30.10 X 22.86 | 3.18 | LED: Option |
| 2x4 | JFM38C1D-H344-4F | 2x4 1G RJ45, T/H,w/ Shield, w/ LEDs | T/H | 30.99 X 59.18 X 25.33 | 3.18 | LED: Option |
| 2x4 | JFM38C3Y-AP01-4F | 2x4 1G RJ45, P/F, PoE/30W, w/ Shield, w/ Light pipe | T/H | 41.42 X 59.18 X 25.58 | 2.15 | 1. Light pipe: Option 2. PoE: Option(15W~90W+) |
| 2x6 | JFM38D10-0659-4F | 2x6 1G RJ45, T/H, w/ Shield, PoE/30W, w/o LEDs | T/H | 38.2 X 87.12 X 25.32 | 3.18 | 1. Light pipe: Option 2. PoE: Option(15W~90W+) |
| 2x6 | JFM38D1D-H126-4F | 2x6 1G RJ45, T/H, w/ Shield, w/ LEDs | T/H | 30.99 X 87.12 X 25.32 | 2.60 | LED: Option |
| 2x8 | JFM38E1D-H336-4F | 2x8 1G RJ45, T/H, w/ Shield, w/ LEDs | T/H | 30.99 X 115.06 X 25.32 | 2.45 | LED: Option |
| 2x8 | JFM38E3Y-AP17-4F | 2x8 1G RJ45,P/F, w/ Shield, PoH/90W, w/ LEDs | P/F | 41.17 X 115.06 X 25.58 | 2.14 | 1. Light pipe: Option 2. PoE: Option(15W~90W+) |
| RJ45 Combo 1xUSB2.0 | JFM38U1A-H207-4F | 1x1 1G combo 1xUSB2.0, T/H, R/A, Black Housing + Black USB | T/H | 29.31 X 16.8 X 21.08 | 3.18 | LED: Option |
| RJ45 Combo 2xUSB2.0 | JFM38U1B-2GV2-4F | 1x1 1G combo 2xUSB2.0, T/H, R/A, Black Housing + Black USB | T/H | 27.3 X 19.08 X 31.05 | 2.29 | LED: Option |
| RJ45 Combo 2xUSB3.0 | JFM38U1B-B313-4F | 1x1 1G combo 2xUSB3.0, T/H, R/A, Black Housing + Blue(300C) USB | T/H | 26.95 X 19.02 X 31.05 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.1 | JFM38U1B-BAS1-4F | 1x1 1G combo 2xUSB3.0, T/H, R/A, Black Housing + Blue(300C) USB | T/H | 26.95 X 18.85 X 31.01 | 2.71 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 1xUSB3.0 | JFM38U1J-U302-4H | 1x1 1G combo 1xUSB3.0, T/H, R/A, Black Housing + Blue(300C) USB | T/H | 28.85 X 16.66 X 21.28 | 2.60 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 1xUSB3.1+Elevated Type C | JFM38U1M-BV3B-4F | 1x1 10G combo 1xUSB3.1+Elevated Type C, T/H, Black Housing + Blue(300C) USB | T/H | 26.95 X 19.02 X 31.01 | 2.67 | 1. LED: Option 2. Housing & USB color: Option |
| Vertical 1x1 | JFM38V1S-0EV7-7F | 1x1 1G RJ45, T/H, Vertical, w/ Shield,w/ LEDs, w/ surge(2KV, 6KV) | T/H | 17.02 x 16.26 x 17.02 | 2.00 | LED: Option |
| Vertical 1x1 | JFM38V1G-170M-4F | 1x1 1G RJ45, T/H, Vertical, w/ Shield,w/ LEDs | T/H | 17.02 x 16.26 x 17.02 | 2.00 | LED: Option |
PHY IC - Passend zur JFM-Serie (active)
Zur besseren mobilen Darstellung der Tabelle drehen Sie bitte Ihr Handy quer.
PHY IC Model
2.5G/5G/10G ICM Qualification List
| PHY IC Manufactory |
PHY IC Model |
Form Factor | T/H or P/F |
Speed | Non-PoE=N/A PoE=15.5W; PoE+=25.5W; uPoE=60W PoH=90W~100W PoH+=120W |
Match PHY IC | VendorP/N |
|---|---|---|---|---|---|---|---|
| Broadcom | BCM84902/BCM84904 | 1x1 | P/F | 25G | Non-PoE | 4-Channel | JFM88130-B045-4F |
| Broadcom | BCM84888 | 1x1 | T/H | 5G | Non-PoE | 4-Channel | JFM78010-B041-4F |
| Broadcom | BCM84833/BCM84844 | 1x1 | T/H | 10G | Non-PoE | 4-Channel | JFM58010-B04G-4F |
| Broadcom | BCM84833/BCM84844 | 1x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58410-B06G-4F |
| Broadcom | BCM848XX | 2x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48A1Y-BU10-4F |
| Broadcom | BCM848XX | 2x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48C1N-BU25-4F |
| Broadcom | BCM54998x/BCM8488X | 2x4 | T/H | 5G | PoH | 4-Channel | JFM78C3Y-BU37-4F |
| Broadcom | BCM8488X | 2x4 | P/F | 10G | PoH | 4-Channel | JFM58C3Y-BU34-4F |
| Broadcom | BCM84833/BCM84834 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-BY1G-4F |
| Broadcom | BCM84834 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C1Y-B11G-4F |
| Broadcom | BCM84833/BCM84834 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C3Y-BA9G-4F |
| Broadcom | BCM848XX | 2x6 | T/H | 2.5G | uPoE | 5-Channel | JFM48D10-0750-4F |
| Broadcom | BCM848XX | 2x6 | T/H | 5G | Non-PoE | 5-Channel | JFM78D10-0701-4F |
| Broadcom | BCM848XX | 2x6 | T/H | 5G | uPoE | 5-Channel | JFM78D10-TU18-4F |
| Broadcom | BCM84833/BCM84834 | 2x6 | P/F | 10G | Non-PoE | 4-Channel | JFM58D30-HY4G-4F |
| Broadcom | BCM84833/BCM84834/ BCM84844 | 2x6 | P/F | 10G | Non-PoE | 4-Channel | JFM58D30-BY3G-4F |
| Broadcom | BCM848XX | 2x8 | T/H | 2.5G | Non-PoE | 4-Channel | JFM48E1N-BU85-4F |
| Broadcom | BCM84833/BCM84834 | 2x8 | T/H | 10G | Non-PoE | 4-Channel | JFM58E10-HY5G-4F |
| Broadcom | BCM84833/BCM84834/BCM84858R | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E30-CY2G-4F |
| Broadcom | BCM84833/BCM84834/ BCM84844/BCM84848 | 2x8 | T/H | 10G | Non-PoE | 4-Channel | JFM58E10-BY0G-4F |
| Broadcom | BCM84833/BCM84834 | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E3Y-B05G-4F |
| Intel | X540 | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5801J-710G-4F |
| Intel | X540 | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5811J-SG14-4F |
| Marvell | 88E2010 | 1x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48010-TP22-4F |
| Marvell | 88E2010 | 1x1 | T/H | 5G | uPoE | 4-Channel | JFM78010-TP23-4F |
| Marvell | 88x3310/88x3320 | 1x1 | T/H | 2.5G | uPoE | 4-Channel | JFM4811B-MP01-4F |
| Marvell | 88x3310/88x3320 | 1x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48110-B009-4F |
| Marvell | 88x3310/88x3320 | 1x1 | T/H | 2.5G | PoH | 5-Channel | JFM48010-2U51-4F |
| Marvell | 88x3340 | 1x1 | T/H | 2.5G | uPoE | 4-Channel | JFM4851D-2514-4F |
| Marvell | Multi | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5801J-M12G-4F |
| Marvell | Multi | 1x1 | T/H | 10G | Non-PoE | 4-Channel | JFM5801J-M35G-4F |
| Marvell | Multi | 1x2 | T/H | 10G | Non-PoE | 4-Channel | JFM5831T-M27G-4F |
| Marvell | Multi | 1x4 | T/H | 10G | Non-PoE | 4-Channel | JFM5841T-M44G-4F |
| Marvell | Multi | 1x4 | T/H | 10G | Non-PoE | 4-Channel | JFM5841T-M17G-4F |
| Marvell | Multi | 2x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48A1Y-BU10-4F |
| Marvell | Multi | 2x1 | T/H | 10G | Non-PoE | 5-Channel | JFM58A10-M28G-4F |
| Marvell | Multi | 2x1 | T/H | 10G | Non-PoE | 5-Channel | JFM58A30-M29G-4F |
| Marvell | Multi | 2x1 | T/H | 10G | Non-PoE | 4-Channel | JFM58A1Y-M36G-4F |
| Marvell | Multi | 2x2 | T/H | 2.5G | PoE+ | 4-Channel | JFM48B10-SC04-4F |
| Marvell | Multi | 2x4 | T/H | 2.5G | uPoE | 4-Channel | JFM48C1N-BU25-4F |
| Marvell | 88X35xx/88E25xx | 2x4 | P/F | 10G | PoH | 4-Channel | JFM58C3Y-MU34-4F |
| Marvell | Multi | 2x4 | T/H | 10G | Non-PoE | 5-Channel | JFM58C10-MY0G-4F |
| Marvell | Multi | 2x4 | P/F | 10G | Non-PoE | 5-Channel | JFM58C3Y-M06G-4F |
| Marvell | Multi | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-MY1G-4F |
| Marvell | Multi | 2x6 | T/H | 10G | Non-PoE | 5-Channel | JFM58D1Y-M26G-4F |
| Marvell | Multi | 2x6 | P/F | 10G | Non-PoE | 4-Channel | JFM58D3Y-M33G-4F |
| Marvell | Multi | 2x6 | P/F | 10G | uPoE | 4-Channel | JFM58D3Y-MU1G-4F |
| Marvell | Multi | 2x6 | T/H | 2.5G | uPoE | 5-Channel | JFM48D10-0750-4F |
| Marvell | Multi | 2x6 | T/H | 5G | Non-PoE | 5-Channel | JFM78D10-0701-4F |
| Marvell | Multi | 2x6 | T/H | 5G | uPoE | 5-Channel | JFM78D10-TU18-4F |
| Marvell | 88X35xx/88E25xx | 2x8 | P/F | 10G | PoH | 4-Channel | JFM58E3Y-MH01-4F |
| Marvell | Multi | 2x8 | T/H | 2.5G | uPoE | 4-Channel | JFM48E1N-BU85-4F |
| Marvell | Multi | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E3Y-M37G-4F |
| Marvell | Multi | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E30-MY2G-4F |
| Marvell | AQ413C | 2x8 | P/F | 10G | uPoE | 4-Channel | JFM58E3Y-BUGG-4F |
| Marvell | 88E3120/SFT9102 | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5801A-221G-4F |
| Marvell | SFT9102 | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5801J-M12G-4F |
| Marvell | SFT9102 | 2x4 | P/F | 10G | Non-PoE | 4-Channel | JFM58C30-HY0G-4F |
| Marvell | SFT9102 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-T11G-4F |
| Marvell | SFT9102 | 2x4 | T/H | 10G | Non-PoE | 5-Channel | JFM58C10-MY0G-4F |
| Marvell | SFT9104 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-MY1G-4F |
| Marvell | 88E3140 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-MY1G-4F |
| Marvell | 88E3140 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-T11G-4F |
| Marvell | 88E3140 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-MY0G-4F |
| Marvell | 88E3140 | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E30-MY2G-4F |
| Aquantia (PLX) | AQR105/ AQR405 | 1x1 | T/H | 2.5G | PoH | 4-Channel | JFM48011-TU01-4F |
| Aquantia (PLX) | AQR108/AQR111/AQR112/AQR113/AQR114/AQR115 | 1x1 | T/H | 5G | uPoE | 4-Channel | JFM7811A-TU33-4F |
| Aquantia (PLX) | AQR111/AQR114 | 1x1 | T/H | 5G | uPoE | 4-Channel | JFM78010-TP23-4F |
| Aquantia (PLX) | AQR107/AQR108/AQR109 | 1x1 | T/H | 5G | Non-PoE | 4-Channel | JFM7801J-T26G-4F |
| Aquantia (PLX) | TN8022 | 1x1 | T/H | 10G | Non-PoE | 4-Channel | JFM5801Y-P05G-4F |
| Aquantia (PLX) | AQ1202 | 1x1 | T/H | 10G | Non-PoE | 5-Channel | JFM5801J-T03G-4F |
| Aquantia (PLX) | AQR407/AQR408/AQR409/AQR411C | 2x4 | T/H | 5G | uPoE | 4-Channel | JFM78C1Y-BU08-4F |
| Aquantia (PLX) | AQ1202 | 2x4 | T/H | 10G | Non-PoE | 5-Channel | JFM58C1Y-T02G-4F |
| Aquantia (PLX) | TN8044/TN8045 | 2x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58C10-P01G-4F |
| Aquantia (PLX) | TN8044/TN8045 | 2x6 | P/F | 10G | Non-PoE | 4-Channel | JFM58D3Y-P02G-4F |
| Aquantia (PLX) | TN8044/TN8045 | 2x8 | P/F | 10G | Non-PoE | 4-Channel | JFM58E3Y-P03G-4F |
| Aquantia (PLX) | TN8044/TN8045 | T/H | 10G | Non-PoE | 4-Channel | JFM58E1Y-P04G-4F | |
| Realtek | Multi | 1x1 | T/H | 2.5G | Non-PoE | 4-Channel | JFM4801J-R112-4F |
| Realtek | Multi | 1x1 | T/H | 2.5G | uPoE | 4-Channel | JFM48110-B016-4F |
| Realtek | Multi | 1x1 | T/H | 2.5G | uPoE | 4-Channel | 2MT4129-R2402-7F |
| Realtek | Multi | ICM Combo dual USB3.0 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1B-R1V3-4F |
| Realtek | Multi | ICM Combo dual USB3.0 |
T/H | 5G | Non-PoE | 4-Channel | JFM78U1J-BC33-4F |
| Realtek | Multi | ICM Combo dual USB2.0 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1M-F2GA-4F |
| Realtek | Multi | ICM Combo dual USB3.1 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1M-BA04-4F |
| Realtek | Multi | ICM Combo dual USB3.1 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1M-BAC8-4F |
| Realtek | Multi | ICM Combo dual USB2.0 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1M-F2VA-4F |
| Realtek | Multi | ICM Combo dual USB3.0 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1G-B3R6-4F |
| Realtek | Multi | ICM Combo dual USB3.1 |
T/H | 2.5G | Non-PoE | 4-Channel | JFM48U1F-BAV2-4F |
| Realtek | Multi | ICM Combo dual USB3.0 |
T/H | 2.5G | Non-PoE | 4-Channel | FM48U1B-BV43-4F |
| Realtek | Multi | 1x4 | T/H | 10G | Non-PoE | 4-Channel | JFM58413-B06G-4F |
Passive - RJ45 ohne Übertrager (JF)
Zur besseren mobilen Darstellung drehen Sie bitte Ihr Handy quer.
RJ45 ohne Übertrager
| NxN |
Artikelnummer | Beschreibung | Befestigungs-art | L x W x H (mm) | Pin Länge (mm) | Bemerkungen |
|---|---|---|---|---|---|---|
| 1x1 | JMP1N01-RBK07-4F | 1x1 passive RJ45, T/H, R/A, w/o Shield, w/o LEDs | T/H | 15.10 X 16.00 X 13.20 | 2.80 | |
| 1x1 | JMP1N03-RKAT4-7F | 1x1 passive RJ45, T/H, R/A, w/Shield, w/ LEDs | T/H | 15.80 X 16.26 X 11.20 | 2.60 | LED: Option |
| 1x1 | JMP1N05-RAH01-4F | 1x1 passive RJ45, T/H, w/Shield, w/o LEDs | T/H | 15.80 X 16.26 X 13.35 | 3.18 | LED: Option |
| 1x2 | JMP1N25-RC000-4F | 1x1 passive RJ45, T/H, w/Shield, w/o LEDs(CAT3) | T/H | 21.26 X 31.2 X 13.62 | 3.18 | |
| 1x4 | JMP1N45-R5E33-4H | 1x4 Passive RJ45, T/H, R/A , w/ Shield, w/ LEDs(CAT5E) | T/H | 20.70 X 58.10 X 11.95 | 1.80 | LED: Option |
| 2x1 | JMP1NA5-RBQ05-4F | 2x1 Passive RJ45, T/H, R/A, w/ Shield, w/o LEDs | T/H | 28.02 X 17.25 X 25.50 | 3.18 | |
| 2x4 | JMP1NC7-R19D2-4F | 2x4 Passive RJ45, T/H, w/ Shield, w/ LEDs | T/H | 28.25 X 63.65 X 25.24 | 2.54 | LED: Option |
| 2x6 | JMP1ND7-R20S1-4F | 2x6 Passive RJ45, T/H, w/ Shield, w/ LEDs | T/H | 32.75 X 87.12 X 25.32 | 2.50 | LED: Option |
| RJ45 Combo 1xUSB2.0 | JMP1NU3-RA006-4F | 1x1 Passive RJ45 combo 1xUSB2.0, T/H, R/A, Black Housing + Black USB | T/H | 27.30 X 18.7 X 22.50 | 2.80 | |
| RJ45 Combo 2xUSB2.0 | JMP1NU1-RB2M1-4F | 1x1 Passive combo 1xUSB3.0, T/H, R/A, Black Housing + Blue USB | T/H | 27.30 X 18.70 X 31.05 | 2.29 | LED: Option |
| RJ45 Combo 1xUSB3.0 | JMP1NU5-RU105-4F | 1x1 Passive combo 1xUSB3.0, T/H, R/A, Black Housing + Blue USB | T/H | 28.81 X 16.20 X 21.03 | 3.18 | Housing & USB color: Option |
| RJ45 Combo 2xUSB3.0 | JMP1NU1-RB3M8-4F | 1x1 Passive RJ45 combo 2xUSB3.0, T/H, R/A, Black housing + Blue(300C) USB | T/H | 27.30 X 18.70 X 31.05 | 2.64 | 1. LED: Option 2. Housing & USB color: Option |
| RJ45 Combo 2xUSB3.1 | JMP1NU1-RA3A8-4F | 1x1 Passive RJ45 combo 2xUSB3.1, T/H, R/A, Black Housing + Blue(300C) USB | T/H | 26.95 X 18.85 X 31.01 | 2.71 | 1. LED: Option 2. Housing & USB color: Option |
| 1x1 vetical | JM24117-K001-4F | 1x1 passive RJ45, T/H, Vertical, w/ Shield, w/o LEDs | T/H | 17.30 X 16.80 X 17.00 | 3.20 | |
| 1x1 vetical | JMP1R0Y-VBK04-4F | 1x1 passive RJ45, T/H, Vertical, w/o Shield, w/o LEDs | T/H | 15.90 X 12.85 X 15.50 | 2.60 |
